VSI Sand-making Machine

VSI Sand-making Machine

【Feed Size】 <  50mm

【Finished Product Size】 <  5mm

【Capacity】  60~520t/h


VSI sand-making machine adopts German advanced technologies. It’s a high-performance crusher with global advanced technologies and adopts unique rotor design, wear-resistant materials, optimized crushing speed and hydraulics, which makes it the perfect combination model of professional crushing technology and machinery manufacturing.

  • Features
  • Pictures&Videos
  • Specifications
  • Applications
  • Cases
  • Download
Consult : 0086-371-68612899

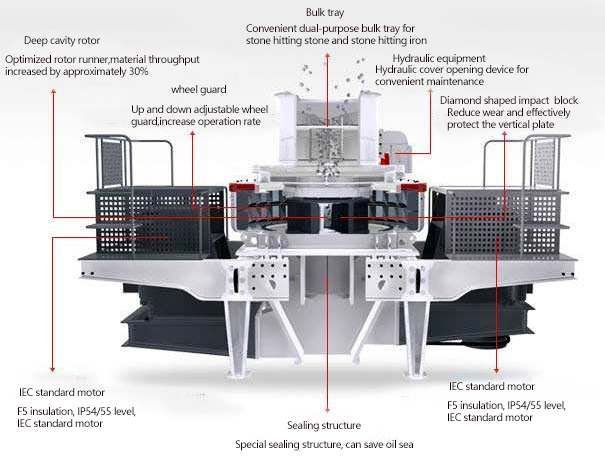

VSI Sand-making Machine高压磨粉机 High capacity and yield

Its capacity is 60-520t/h which increases by 30% and is more steady compared to traditional machines under same power.

VSI Sand-making Machine Long lifespan of vulnerable parts with low utilization cost

Best impact angle design of crushing chamber reduces vulnerable parts’ friction and its operation cost is 30% lower than that of traditional machines, which directly decreases utilization cost.

VSI Sand-making Machine Good finished product shape

The finished product is cubic in good appearance and has rational graduation and adjustable fineness modulus; it is suitable for manufactured sand production and stone reshape and it has been proved that its reshaping efficiency is better compared to other traditional machines.

VSI Sand-making Machine Hydraulic device with easy maintenance

Hydraulic drive device makes easy maintenance of internal crushing chamber parts and shortens downtime saving time and labor.

VSI Sand-making MachineVSI Sand-making Machine Automatic testing with safety and reliability

Over vibration display and alarm have been set up and if there is improper operation, warnings will be released and the machine will be stopped for protection.

VSI Sand-making Machine Thin oil lubrication with automatic maintenance

Thin oil lubricating station imported from German with original packaging with double oil pumps fueling and the machine will stop automatically when their is no oil flow or oil pressure; the machine has oil cooling and heating device ensuring shaft lubrication best condition, which thoroughly solves hot shaft problem and makes the main shaft with constant temperature, consequently extending maintenance cycle and utilization life.

VSI Sand-making Machine Easy maintenance and operation

The machine is relatively light and has several installation methods including movable installation, featured by simple installation, maintenance and repair and convenient operation; with specific usage, slight adjustment of VSI sand-making machine will fully play its excellent performances.

VSI Sand-making MachineVSI Sand-making Machine Multiple and flexible machine functions

With unique feeding and crushing structures, the machine realized shift between “stone impacting stone” and “stone impacting liner” achieving muti-functions of one machine. If you want to change VSI crusher’s usage, only a small adjustment needs to be done to adapt different operation request including artificial sand making, stone reshaping and material grinding.

VSI Sand-making Machine International technologies with quality assurance

The machine adopts latest technologies, advanced rivet technology, automobile technology of rust-cleaning by sand-blasted and painting, which greatly improved machine’s internal and external quality. Its core components are international famous brand (the bearing is TIMKEN rolling bearing with high accuracy class) ensuring low rate of systemic faults.

VSI Sand-making Machine Low noise and environmental protection

The machine makes low noise and no pollution. Its unique air self-circulating system greatly reduces outward exhaust airflow and dust, which is good for environment. Besides, VSI sand-making machine can also be installed several specifications dust collectors.

VSI Sand-making MachineVSI Sand-making Machine Brief Introduction

VSI sand-making machine also called as VSI series vertical shaft impact crusher is a latest product of our company which introduces German advanced technologies and combines with domestic mining industry condition. It’s a high-performance crusher with global advanced technologies and adopts unique rotor design, wear-resistant materials, optimized crushing speed and hydraulics, which makes it the perfect combination model of professional crushing technology and machinery manufacturing. Artificial sand-making industry needs ideal machine-made sand and concrete aggregate and stone reshaping industry needs high-quality and good-shape crushing materials, so that VSI series vertical shaft impact crusher is their best choice. Besides, VSI series vertical shaft impact crusher can provide good-quality aggregate for highway, high speed railway, tall building, city project, hydropower dam constructions, and concrete mixing plant and it is the preferred machine for sand-making field and stone-reshaping field.

VSI Sand-making MachineVSI Sand-making Machine Application

1. The artificial sand making of river Pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, stone cuttings.

2. Production of building aggregates, road surface materials, bedding materials, bituminous concrete and cement concrete aggregates.

3. Manufactured sand production and stone reshape in water conservancy and hydropower, high-grade highways, highways, high-speed railways, passenger dedicated lines, bridges, airport runways, municipal engineering and tall buildings.

4. Pro-phase crushing of ore grinding in mining field, such as crushing of building materials, metallurgy, chemistry, mining, refractories, cement and grinding industries.

5. High abrasive material crushing and secondary breaking, such as desulphuration in thermal power industry and metallurgy industry and environmental protection projects like steel slag and building waste crushing.

6. Production of glass, silica sand and other high purity materials.

VSI Sand-making MachineVSI Sand-making Machine Working Principles

Materials enter into the sand-making machine through feed hopper and then are divided into two currents by separating plate, one current enters to the rapidly rotating rotor and the other current falls through the separating plate all the way around. The material speed accelerates quickly up to dozens gravitational acceleration in the rotor and then materials are cast firstly to impact with materials falling all the way around; then the two currents materials together rush to vortex lining inside the vortex chamber and then the materials are rebounded upward obliquely to upper vortex chamber; and now their movement direction is changed to downward and impact with materials from the impeller forming material curtain. In the above process, materials received two times or more impact, friction and grinding in the vortex crushing chamber and finally are discharged from the bottom outlet.


VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine


Model

VSI-7611

VSI-8518

VSI-9526

VSI-1140

VSI-1145

Capacity(t/h)

Cascade falls and center feeding

120-180

200-260

300-380

450-520

500-640



Feed at center

60-90

100-130

150-190

225-260

250-360

Max.feed size(mm)

Soft material

<35

<40

<45

<50

<50



Hard material

<30

<35

<40

<45

<45

Rotation speed(r/min)

1700-1890

1520-1690

1360-1510

1180-1310

1100-1310

Double motor power(kw)

110

180

264

400

440

Overall dimension(L*W*H)(mm)

3700*2150*2100

4140*2280*2425

4560*2447*2778

5000*2700*3300

5000*2700*3300

Weight(t)

7.8

10.3

16

25.6

28.6

Power supply

380v;50Hz

Vibrating sensor

Detection range:0.1-20mm/s continuously adjustable

Lubrication and hydraulic station

Double motor power

2*0.31kw

Safety assuance

Double oil pumps assure enough oil supply, no oil flow, no oil hydraulic automatic stop; Water cooling; Winter heating start

Overall dimension(L*W*H)(mm)

820*520*1270

Tank heater power

2kw

The artificial sand making of river Pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, stone cuttings.Production of building aggregates, road surface materials, bedding materials, bituminous concrete and cement concrete aggregates.Manufactured sand production and stone reshape in water conservancy and hydropower, high-grade highways, highways, high-speed railways, passenger dedicated lines, bridges, airport runways, municipal engineering and tall buildings.High abrasive material crushing and secondary breaking, such as desulphuration in thermal power industry and metallurgy industry and environmental protection projects like steel slag and building waste crushing.Production of glass, silica sand and other high purity materials.


VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

GriotteBitter sparCalcsparBarytesPyrophyllite

VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

LimestoneCobblestone Iron oreFlyashBuilding rubbish





VSI Sand-making Machine

VSI Sand-making Machine

VSI Sand-making Machine

Zimbabwe 5-10 Tons Granite Crushing Production Line
Sichuan 30-35TPH River Pebble Sand Making Production LineEgypt customer 150-450 TPH stone production line
